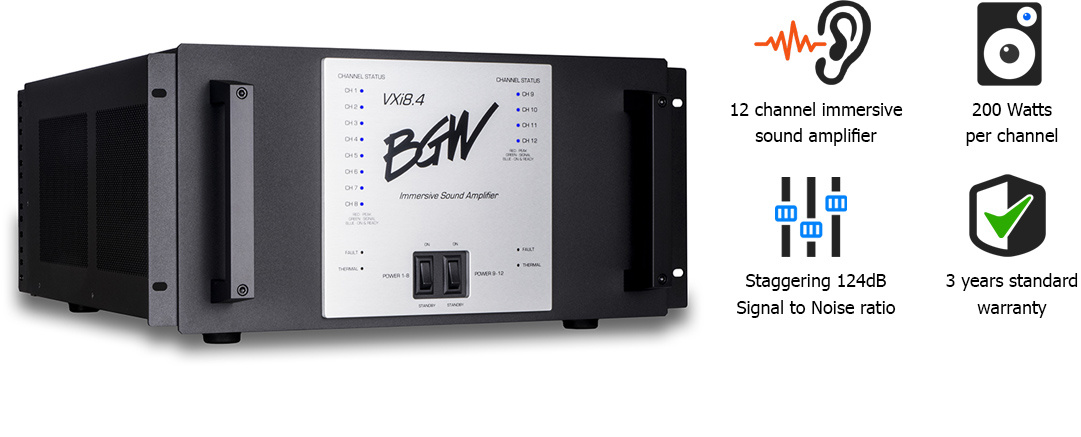

BGW VXi 8.4

Unprecedented speed, control and low noise

Enter BGW’s Immersive Sound Amplifiers. These BGW’s pack up to 12 channels in a single chassis, and do it with power and control never before available in any commercial amplifier. These BGW’s are fully-balanced differential amplifiers (an industry first) and offer unprecedented speed, control and low noise.


Class AB with fully balanced differential design; 4-quadrant input stage, current feedback and dual DC Servos.


DB-25 and Balanced XLR
0 to 12 dB in 1.5 dB steps
50 kΩ
2.5 RMS input for rated output
27.9 dB
(Balanced) Pin-2 = Positive, Pin-3 = Negative for Non-Inverting Output

Power Output

RMS, 8Ω, 1kHz, 1% THD: 200W (40 Vrms) x 16
300 Watts (34.64 Vrms).
392 Watts (39.60 Vrms)
519.7 Watts (45.56 Vrms)
>85 dB
<10 mV
4/8 Ω
+0/- 3dB 10 to 80 kHz
124 dB referenced to rated output (A-Weighted)

Speaker Outputs

1 Pair per channel High-current, 32 A Detachable “Phoenix” style connectors

Power and Dimensions

117V AC, Dual 20A Inlets; 2 15A Hydraulic/Magnetic Circuit Breakers; 230VAC, 2 8A Hydraulic/Magnetic Circuit Breakers; 50-60 Hz
<1/2 W @ Standby, 2 x 1440W Maximum
20.75" x 19" x 8.75" (LxWxH in inches)
Up to 150 lbs.
