Unprecedented speed, control and low noise

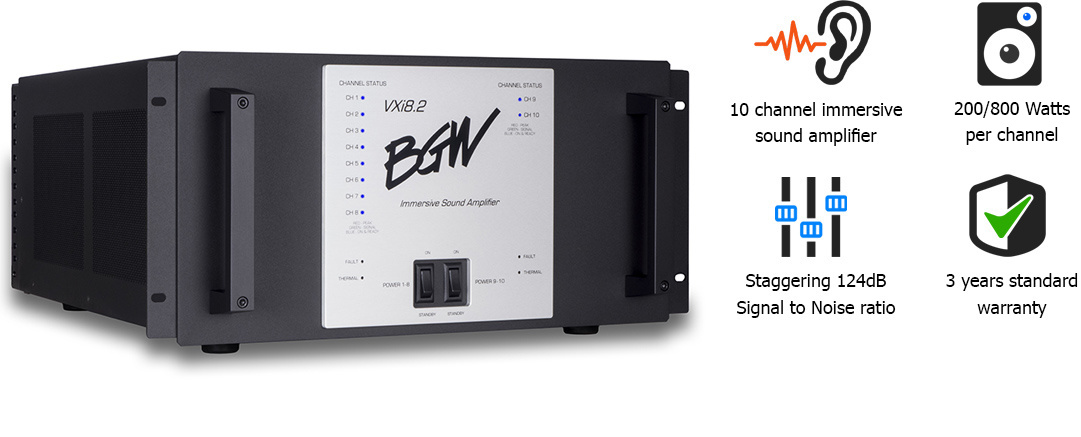

Enter BGW’s Immersive Sound Amplifiers. These BGW’s pack up to 10 channels in a single chassis, and do it with power and control never before available in any commercial amplifier. These BGW’s are fully-balanced differential amplifiers (an industry first) and offer unprecedented speed, control and low noise.
Topology
Class AB with fully balanced differential design; 4-quadrant input stage, current feedback and dual DC Servos.
Input
DB-25 and Balanced XLR
0 to 12 dB in 1.5 dB steps
50 kΩ
2.5 RMS input for rated output
27.9 dB
(Balanced) Pin-2 = Positive, Pin-3 = Negative for Non-Inverting Output
Power Output
2Ω,
FTC 300 Watts (24.50 Vrms)
EIA 504 Watts (31.69 Vrms)
CEA 763.4 Watts (39.06 Vrms)
FTC 300 Watts (24.50 Vrms)
EIA 504 Watts (31.69 Vrms)
CEA 763.4 Watts (39.06 Vrms)
300 Watts (24.5 Vrms)
504 Watts (31.69 Vrms)
763.4 Watts (39.06 Vrms)
<0.05%
1.0%
<0.05%
>60V/μV
>400
>85 dB
<10 mV
4/8 Ω
+0/- 3dB 10 to 80 kHz
124 dB referenced to rated output (A-Weighted)
Speaker Outputs
1 Pair per channel High-current, 32 A Detachable “Phoenix” style connectors
Power and Dimensions
117V AC, Dual 20A Inlets; 2 15A Hydraulic/Magnetic Circuit Breakers; 230VAC, 2 8A Hydraulic/Magnetic Circuit Breakers; 50-60 Hz
<1/2 W @ Standby, 2 x 1440W Maximum
20.75" x 19" x 8.75" (LxWxH in inches)
Up to 150 lbs.
