Unprecedented speed, control and low noise

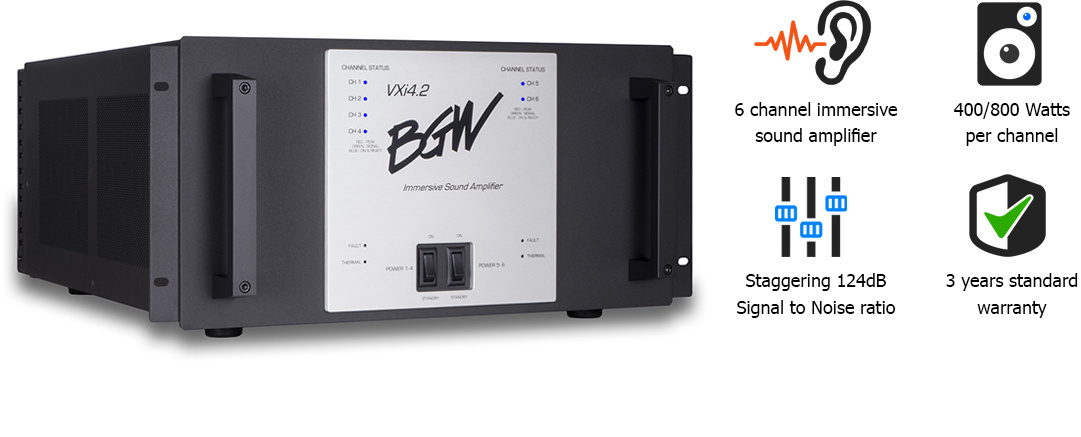

Enter BGW’s Immersive Sound Amplifiers. These BGW’s pack up to 6 channels in a single chassis, and do it with power and control never before available in any commercial amplifier. These BGW’s are fully-balanced differential amplifiers (an industry first) and offer unprecedented speed, control and low noise.
Topology
Class AB with fully balanced differential design; 4-quadrant input stage, current feedback and dual DC Servos.
Input
DB-25 and Balanced XLR
0 to 12 dB in 1.5 dB steps
50 kΩ
2.5 RMS input for rated output
27.9 dB
(Balanced) Pin-2 = Positive, Pin-3 = Negative for Non-Inverting Output
Power Output
RMS, 8Ω, 1kHz, 1% THD: 400 Watts x8
<0.05%
1.0%
<0.05%
>60V/μV
>400
>85 dB
<10 mV
4/8 Ω
+0/- 3dB 10 to 80 kHz
124 dB referenced to rated output (A-Weighted)
Speaker Outputs
1 Pair per channel High-current, 32 A Detachable “Phoenix” style connectors
Power and Dimensions
117V AC, Dual 20A Inlets; 2 15A Hydraulic/Magnetic Circuit Breakers; 230VAC, 2 8A Hydraulic/Magnetic Circuit Breakers; 50-60 Hz
<1/2 W @ Standby, 2 x 1440W Maximum
20.75" x 19" x 8.75" (LxWxH in inches)
Up to 150 lbs.
